Custom Electronic Plastic Enclosures

Detailed Description

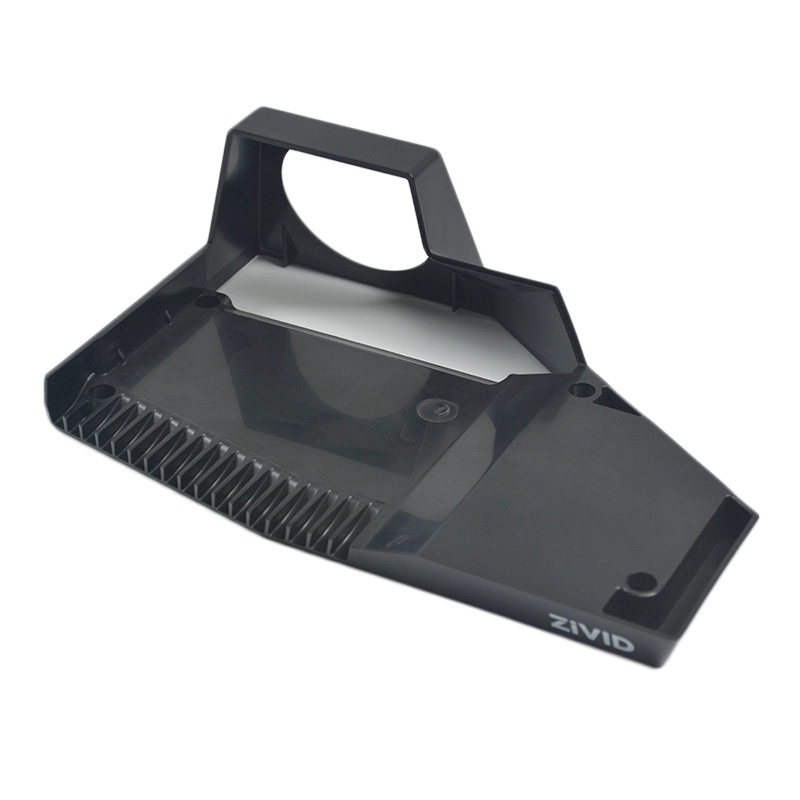

Custom electronic plastic enclosures combine external protection with internal component mounting, heat dissipation and product appearance. Upper and lower shells can integrate PCB bosses, connector openings, ventilation slots, cable-routing features and snap-fit structures directly into the molded part.

Common materials include ABS, PC, PC+ABS and HIPS, with flame-retardant grades available where project requirements demand improved fire performance. During mold development, mating gaps, screw-boss geometry, wall thickness and cooling balance are carefully considered to reduce deformation and visible sink marks. Painting, texture, printing and laser marking can be added for finished product identification and appearance.

Available Surface Finishes

• Fine Matte Texture: Common low-gloss finish for electronic housings and equipment covers.
• VDI Mold Texture: Standardized mold texture grades provide controlled appearance and tactile feel.
• High-gloss Finish: Polished mold surfaces create smooth decorative exterior panels.
• Spray Painting: Supports custom colors, metallic finishes and branded product appearances.
• UV Coating: Improves surface appearance and scratch resistance for selected external housings.
• Silk-screen Printing: Suitable for logos, port labels and operating information.
• Laser Marking: Permanent model numbers, symbols and traceability information can be added.

Structural & Functional Breakdown

• Upper & Lower Housing Structure: Matching shells can be designed with controlled mating gaps and locating interfaces.
• PCB Mounting Boss Structure: Internal screw columns support PCBs and electronic modules.
• Ventilation Structure: Slots, holes and honeycomb patterns provide passive heat dissipation.
• Snap-fit Assembly Structure: Integrated clips reduce screws and shorten assembly time.
• Internal Reinforcing Ribs: Rib networks improve enclosure rigidity without excessive wall thickness.

Key Machining Highlights

• Custom Enclosure Geometry: Supports complex external forms and detailed internal mounting structures.
• Integrated Ventilation Design: Ventilation openings can be molded directly without extensive secondary machining.
• Flame-retardant Material Options: Suitable FR ABS, PC or PC+ABS grades can be evaluated.
• Controlled Assembly Accuracy: Bosses, clips and mating edges are designed for consistent enclosure assembly.
• Secondary Processing Integration: Painting, printing, laser marking and ultrasonic welding can be combined.
• Prototype to Production Tooling: Suitable for design validation through high-volume manufacturing.

Application Fields

• Speaker Housings
• Network Equipment
• Industrial Controllers
• Smart Home Devices
• Power Electronics
• Consumer Electronics
