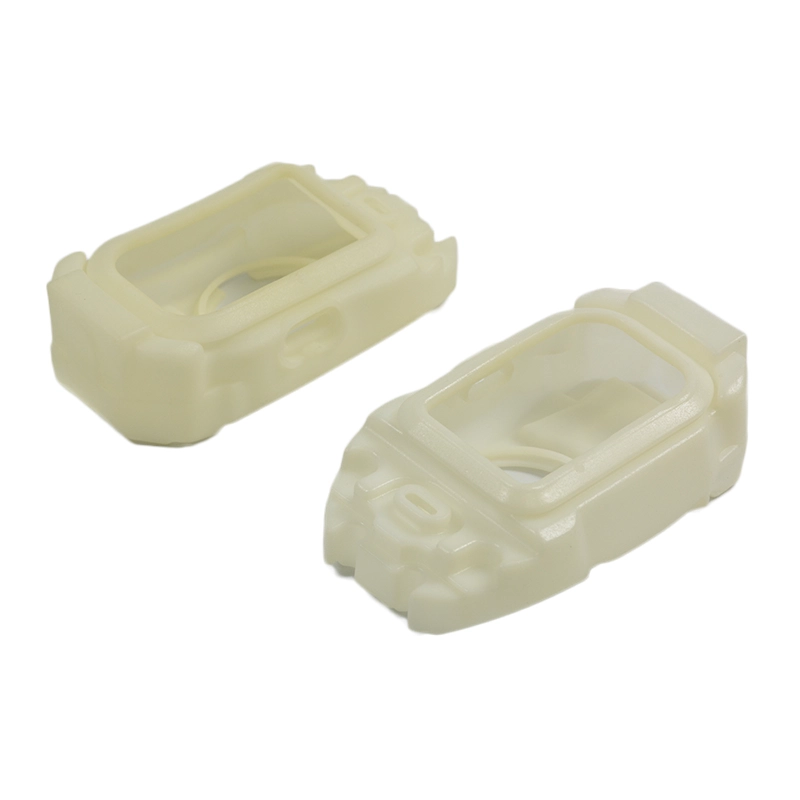

Precision Plastic Injection Molding Parts

Detailed Description

Precision plastic injection molding is suitable for small and medium-sized components that require repeatable dimensions and detailed functional features. Parts can integrate narrow ribs, internal grooves, snap-fits, precision holes, connector interfaces and threaded-insert locations within a compact structure.

Materials such as POM, PA6, PA66, PC, ABS, PP and PBT can be selected according to requirements for wear resistance, stiffness, dimensional stability or chemical resistance. Production consistency depends on accurate tooling, controlled resin shrinkage, balanced filling and stable mold temperature. Multi-cavity molds, insert molding and overmolding can also be used for higher-volume or multifunctional components.

Available Surface Finishes

• Standard Molded Finish: Cost-effective finish for internal functional plastic components.
• Fine Matte Texture: Provides a uniform low-gloss appearance on precision parts.
• High-polish Finish: Suitable for smooth, decorative or low-friction surfaces.
• VDI Texture: Controlled mold textures can be selected according to application requirements.
• Laser Marking: Adds permanent codes, identification and functional symbols.
• Pad Printing: Suitable for compact logos and markings on small components.

Structural & Functional Breakdown

• Fine Rib Structure: Thin ribs increase local stiffness within limited space.
• Precision Boss Structure: Molded screw bosses support repeatable positioning and fastening.
• Snap-fit Structure: Small integrated clips enable quick mechanical assembly.
• Internal Groove Structure: Channels can guide wires, connectors or moving mechanisms.
• Insert Interface Structure: Metal pins, bushes and threaded inserts can be incorporated.
• Multi-cavity Mold Structure: Small parts can be arranged in multi-cavity tooling for improved output.

Key Features

• Precision Dimensional Control: Typical ±0.05–0.15 mm dimensional control for suitable geometries.
• Multi-cavity Tooling: Supports 1–16 or more cavities depending on part size and geometry.
• Engineering Plastic Processing: Supports wear-resistant, reinforced and dimensionally stable resins.
• Insert & Overmolding Capability: Metal inserts or secondary materials can be integrated where required.
• Complex Detail Molding: Fine ribs, slots, holes, bosses and undercuts can be incorporated into one component.
• High Repeatability: Stable tooling and process control support consistent batch production.

Application Fields

• Electronic Components
• Sensor Housings
• Connector Components
• Automotive Mechanisms
• Small Gear & Motion Components
• Control System Parts
• Appliance Components
• Industrial Precision Parts
