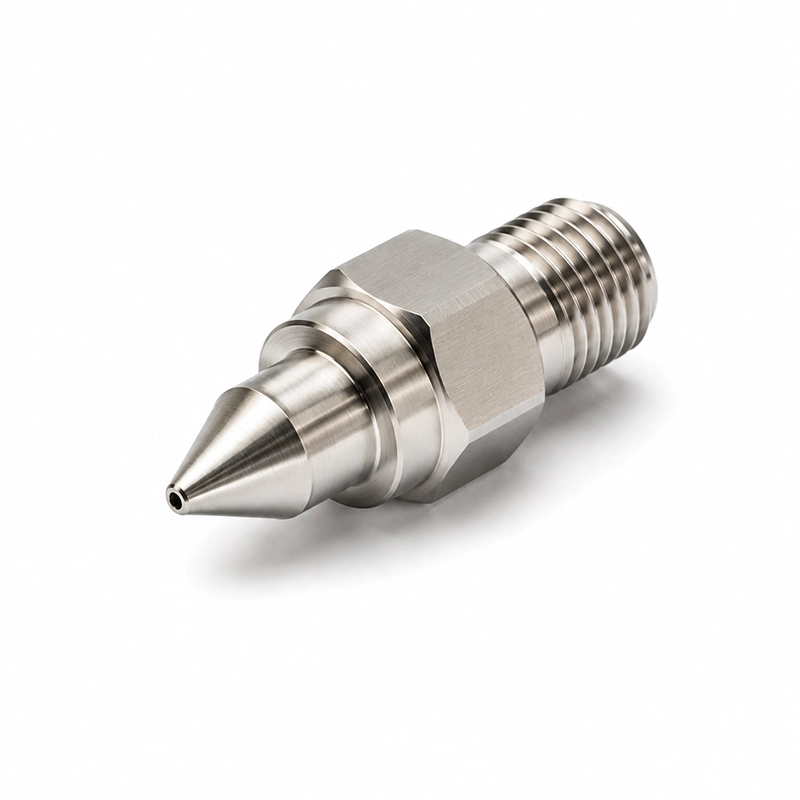

Swiss Machined Miniature Nozzles

Detailed Description

Swiss machined miniature nozzles are designed for applications requiring accurate fluid or gas delivery through compact precision components. Typical products include dispensing nozzles, spray tips, lubrication nozzles, cooling jets, gas outlets and miniature process-fluid components.

Stainless steel is commonly selected for corrosion resistance, strength and clean operating environments, while brass provides excellent machinability and is suitable for many pneumatic and fluid-control applications.

Swiss-type machining allows small external diameters, stepped profiles, threaded connections and precision internal passages to be produced while the workpiece remains closely supported by the guide bushing. Cross holes, flats and other secondary features can also be integrated through live tooling.

Available Surface Finishes

• As-Machined: Standard finish for general fluid-control applications.
• Fine Turning: Provides improved surface quality on precision external and internal features.
• Polishing: Available for applications requiring smoother flow-contact surfaces.
• Passivation: Improves corrosion resistance for stainless steel components.
• Nickel Plating: Available for brass parts requiring additional surface protection.

Structural & Functional Breakdown

• Micro Flow Bores: Small internal passages control fluid or gas delivery.
• Tapered Outlet Profiles: Guide flow toward a controlled discharge point.
• Threaded Interfaces: Allow direct connection to fittings or equipment.
• Stepped Internal Geometry: Supports different flow sections within one miniature component.
• Cross-Hole Features: Provide secondary fluid routes or distribution paths.

Key Features

• Small-Diameter Machining: Swiss machining supports miniature nozzle bodies and fine internal features.
• Controlled Flow Geometry: Precision bores and tapered sections can be produced according to application requirements.
• High Concentricity: Internal passages and external diameters can maintain accurate alignment.
• Integrated Secondary Features: Cross holes, flats and threads can be produced through turn-mill operations.
• Multiple Material Options: Stainless steel and brass support different fluid and operating environments.
• Prototype & Batch Production: Suitable for development samples and repeat precision manufacturing.

Applications

• Fluid Dispensing Systems
• Medical Equipment
• Pneumatic Systems
• Cooling Systems
• Lubrication Equipment
• Laboratory Instruments
• Automation Equipment
• Precision Spray Systems
