Precision CNC Turned Valve Spools

Detailed Description

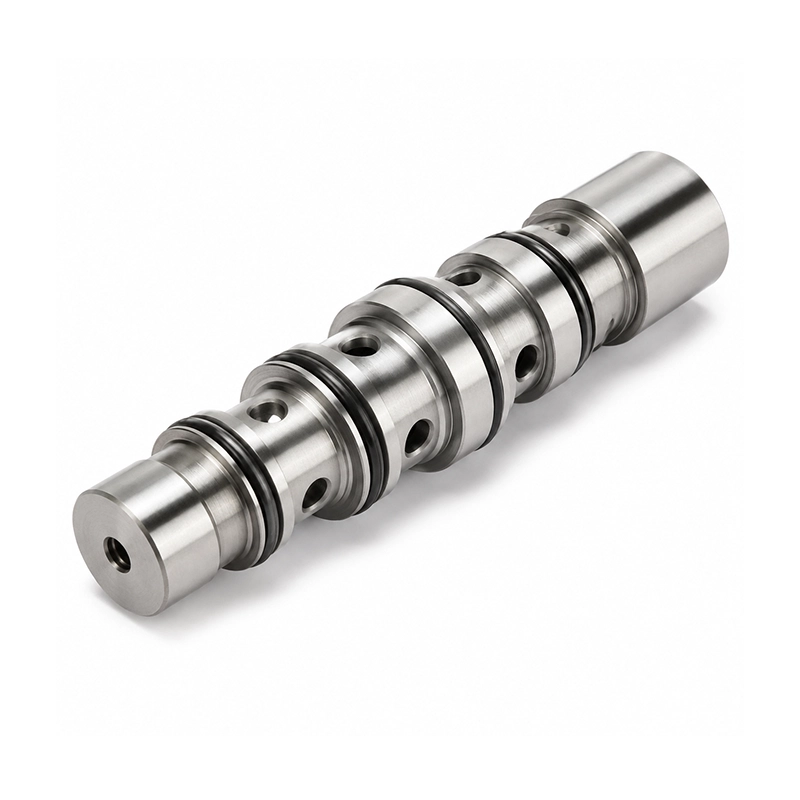

Precision CNC turned valve spools are designed for controlled movement, sealing and fluid regulation inside hydraulic and pneumatic valve assemblies. Typical products include directional valve spools, pressure-control spools, actuator valve components and custom cylindrical flow-control parts.

Stainless steel and alloy steel are commonly selected according to wear resistance, mechanical strength, corrosion resistance and operating pressure. CNC turning allows multiple precision diameters, sealing lands, relief grooves, shoulders and tapered sections to be produced along the same rotational axis.

For sliding and sealing applications, dimensional consistency between adjacent lands is particularly important. Fine turning and secondary grinding or polishing can be applied where tighter surface finish or fit requirements are needed.

Available Surface Finishes

• As-Machined: Standard finish for general mechanical and valve components.
• Fine Turning: Provides smoother functional surfaces for controlled sliding interfaces.
• Grinding: Available for critical diameters requiring tighter dimensional control.
• Polishing: Reduces surface roughness on sealing and sliding areas.
• Passivation: Improves corrosion resistance for stainless steel components.
• Black Oxide: Available for selected alloy steel components.

Structural & Functional Breakdown

• Precision Sealing Lands: Controlled diameters support consistent valve sealing and movement.
• Relief Grooves: Reduce interference and help manage fluid distribution.
• Sliding Surfaces: Smooth cylindrical areas support repeated linear motion.
• Shoulder Features: Provide accurate axial positioning inside valve assemblies.
• Flow-Control Profiles: Custom grooves and diameter transitions regulate fluid paths.

Key Features

• Tight Diameter Control: Critical spool diameters can be maintained for precise sliding and sealing fits.
• Multiple Functional Lands: Several sealing and guiding surfaces can be machined along one component.
• Precision Groove Machining: Relief, oil and retaining grooves can be integrated into the turned geometry.
• Fine Surface Capability: Functional areas can be finished for low-friction movement and improved sealing.
• Custom Valve Geometry: Diameters, shoulders and flow profiles can be produced directly from customer drawings.
• Flexible Production Volumes: Suitable for prototypes, replacement parts and repeat low-volume production.
