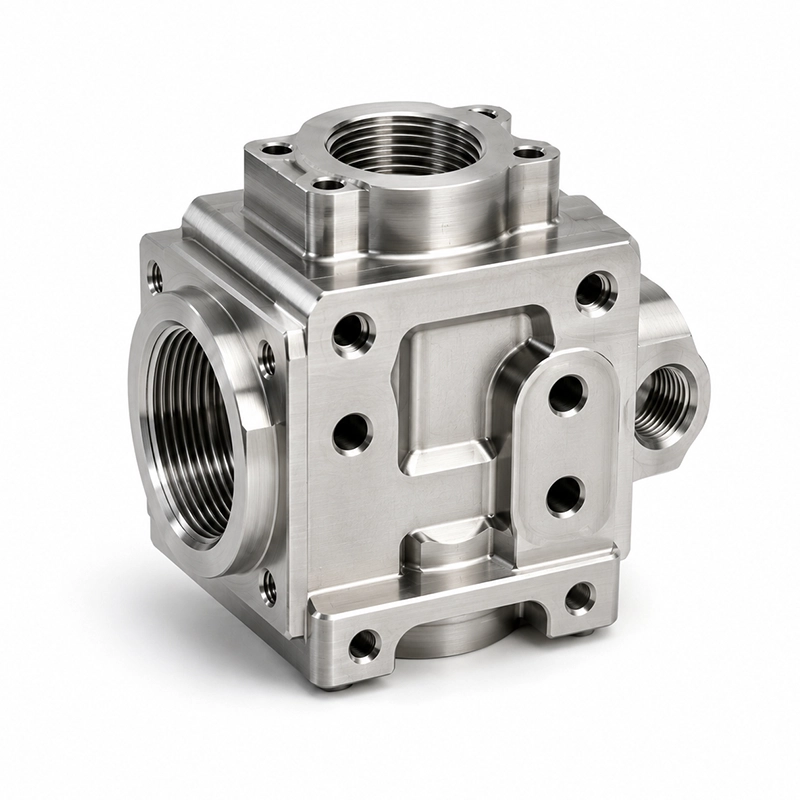

CNC Milled Stainless Steel Valve Bodies

Detailed Description

CNC milled stainless steel valve bodies are manufactured for applications requiring corrosion resistance, mechanical strength and accurate fluid-control interfaces. Typical products include pneumatic valve bodies, hydraulic valve housings, process-control bodies, pressure-control components and custom fluid-routing parts.

Stainless steel 304 and 316 are commonly used depending on corrosion resistance and operating environment. CNC milling enables internal cavities, ports, valve seats, sealing grooves, mounting holes and threaded connections to be incorporated into complex compact structures.

Where multiple flow passages intersect, machining sequence and datum control are important for maintaining port alignment and wall thickness. Multi-axis machining can reduce repeated setups when sealing faces, connections and mounting features are distributed across different orientations.

Available Surface Finishes

• As-Machined: Standard finish for functional internal valve components.
• Passivation: Improves corrosion resistance of stainless steel surfaces.
• Mechanical Polishing: Improves surface appearance and removes machining marks where required.
• Electropolishing: Available for applications requiring smoother and cleaner stainless steel surfaces.
• Bead Blasting: Creates a uniform industrial matte appearance.

Structural & Functional Breakdown

• Precision Flow Passages: Guide liquids or gases through controlled internal routes.
• Valve Seat Interfaces: Accurately machined surfaces support sealing and flow-control components.
• Threaded Connections: Allow direct installation of fittings and external components.
• Sealing Grooves: Support O-rings and gasket systems.
• Multi-Plane Features: Ports and mounting structures can be machined across several component faces.

Key Features

• Corrosion-Resistant Construction: Stainless steel supports demanding industrial and fluid environments.
• Complex Internal Geometry: CNC milling creates interconnected cavities, ports and functional pockets.
• Precision Sealing Interfaces: Valve seats, gasket faces and O-ring grooves can be accurately machined.
• Multi-Surface Machining: Features on several orientations can be completed using multi-axis setups.
• Integrated Functional Features: Threads, mounting holes and fluid connections can be combined in one component.
• Flexible Production Volumes: Suitable for prototypes, replacement components and low-volume manufacturing.

Applications

• Industrial Valves
• Hydraulic Systems
• Pneumatic Equipment
• Process Equipment
• Chemical Equipment
• Fluid Control Systems
• Pressure Control Equipment
• Automation Systems
