5-Axis CNC Robotic Arm Components

Detailed Description

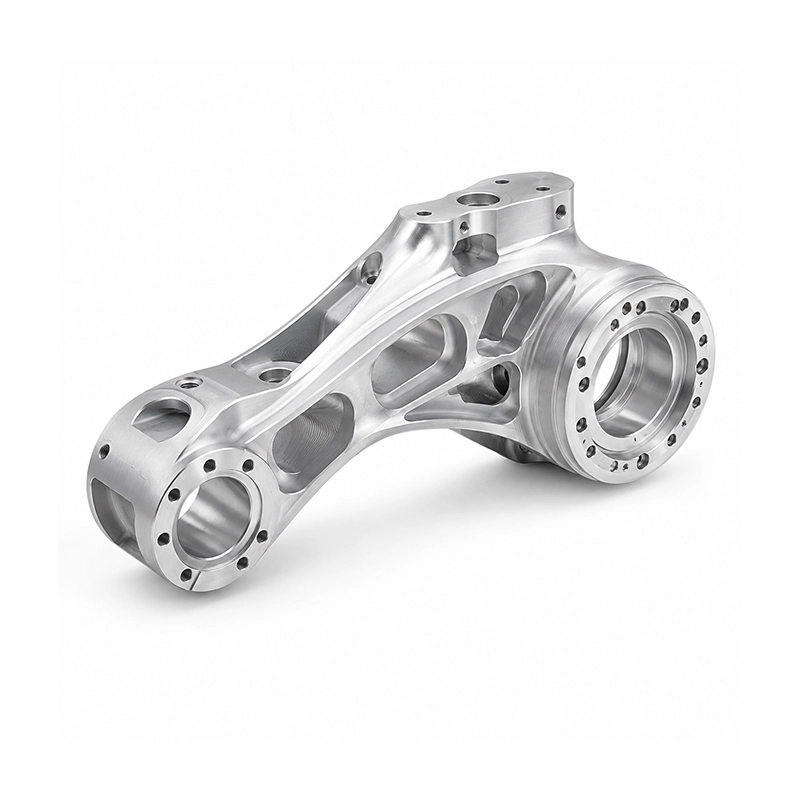

5-axis CNC robotic arm components are manufactured for articulated robots, collaborative robots, automation systems and specialized motion equipment where low mass, structural rigidity and accurate joint alignment are important.

Typical products include robotic arm links, joint housings, actuator mounts, end-effector interfaces and multi-axis structural connectors. Aluminum 6061 is widely used for general lightweight structures, while 7075 can provide higher strength for highly loaded joints. Stainless steel can be selected for wear-resistant or higher-load interfaces.

5-axis machining makes it possible to access mounting holes, bearing seats, actuator interfaces and angled surfaces positioned around complex three-dimensional structures. Lightweight pockets can also be integrated between high-load regions to reduce moving mass and rotational inertia.

Available Surface Finishes

• As-Machined: Suitable for internal robotic and automation components.
• Bead Blasting: Produces a uniform matte surface.
• Clear Anodizing: Improves corrosion resistance for aluminum robotic components.
• Black Anodizing: Common for industrial robotics and automation systems.
• Hard Anodizing: Adds wear resistance around frequently assembled interfaces.
• Passivation: Suitable for stainless steel robotic components.

Structural & Functional Breakdown

• Precision Joint Interfaces: Support accurate alignment between rotating robotic assemblies.
• Bearing & Shaft Seats: Provide controlled locations for motion-system components.
• Weight-Reduction Pockets: Reduce moving mass without removing material from critical load paths.
• Actuator Mounting Features: Integrate motor and gearbox interfaces into the structure.
• Multi-Angle Mounting Faces: Support sensors, cables and auxiliary components at different orientations.

Key Features

• Lightweight Structural Design: Material can be removed from low-load regions to reduce robotic arm inertia.
• Precision Joint Geometry: Bearing bores, shaft interfaces and mounting faces can be accurately related.
• Complex Multi-Side Features: 5-axis machining reaches functional geometry distributed across several orientations.
• Integrated Mounting Interfaces: Motors, gearboxes, sensors and end effectors can connect directly to machined features.
• High-Strength Material Options: Aluminum 7075 and stainless steel support more demanding structural requirements.
• Flexible Production Volumes: Suitable for robotic prototypes, engineering validation and low-volume equipment production.

Applications

• Industrial Robots
• Collaborative Robots
• Robotic Arms
• End-Effector Systems
• Automated Assembly Equipment
• Motion Control Systems
• Inspection Robots
• Custom Automation Equipment
