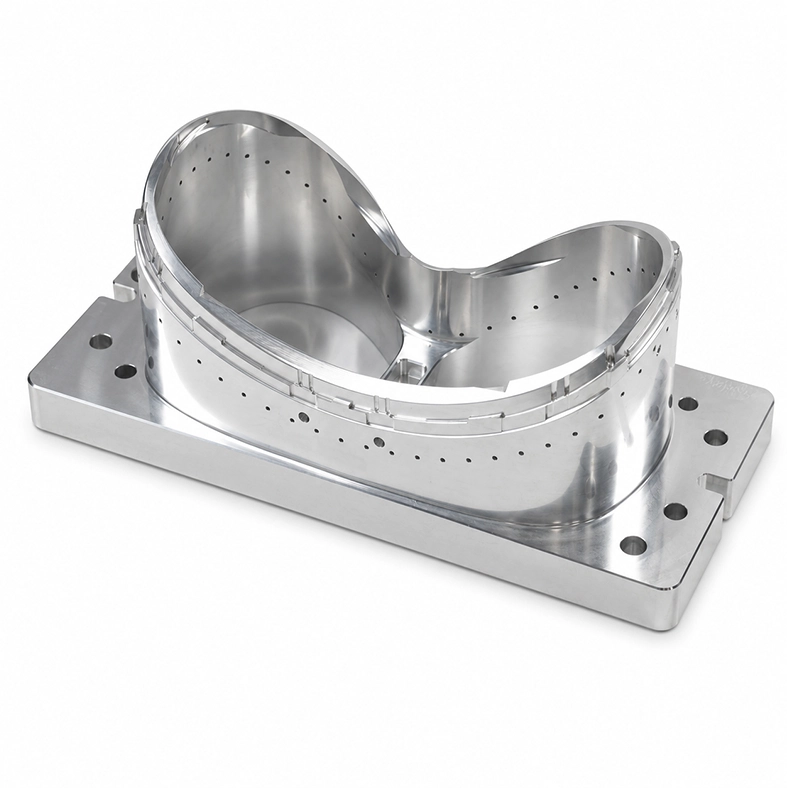

5-Axis CNC Complex Housings

Detailed Description

Our 5-axis CNC complex housings are manufactured for equipment requiring multiple mounting interfaces, internal cavities and ports arranged in different directions.

Five-axis CNC machining allows many external faces, bores, pockets and angled connections to be produced while minimizing manual repositioning. This helps maintain the relationship between bearing bores, connection ports, sealing surfaces and mounting holes.

Secondary operations such as tapping, reaming, deburring and surface treatment can be integrated to supply ready-to-assemble housing components.

Available Surface Finishes

• Anodizing: Common protective finish for aluminum housings.
• Hard Anodizing: Suitable for components requiring improved wear resistance.
• Passivation: Used for stainless steel housings in corrosive environments.
• Powder Coating: Provides durable protective and decorative coverage.

Structural & Functional Breakdown

• Multi-port Housing Structure: Includes connection ports positioned on different orientations.
• Precision Bore Structure: Supports bearings, shafts, valves or fitted components.
• Integrated Mounting Boss Structure: Provides threaded installation points without separate hardware.
• Internal Pocket Structure: Reduces weight while providing internal clearance for functional components.

Key Features

• Multi-face Machining in One Setup: Reduces repeated workpiece positioning.
• Precision Bore Alignment: Helps control relationships between multiple cylindrical features.
• Complex Internal and External Geometry: Supports pockets, bosses, ports and mounting interfaces.
• Integrated Thread Machining: Internal and external threaded features can be incorporated as required.

Applications

• Pump Housings
• Robotics Components
• Automation Equipment
• Instrument Housings
• Mechanical & Hydraulic Systems
