3D Printing of Jigs & Fixtures Tooling Prototypes
Custom non‑standard 3D printed jigs and fixtures. Fast‑turnaround positioning, clamping and inspection tooling for automated production lines, reduce traditional metal tooling cost and cycle time.
Quick Info:
- Process: Industrial SLA / SLS 3D Printing
- Tolerance: ±0.05mm – ±0.10mm
- Lead Time: 3–5 Working Days
- Material: Tough Resin, Nylon PA12, Glass‑filled Nylon
- Surface Finish: Anti‑slip & Wear‑resistant Coating
- Service: Custom Tooling Design, Positioning Fixture Prototype, Production‑line Auxiliary Tooling
Get Free Quote
Detailed Description

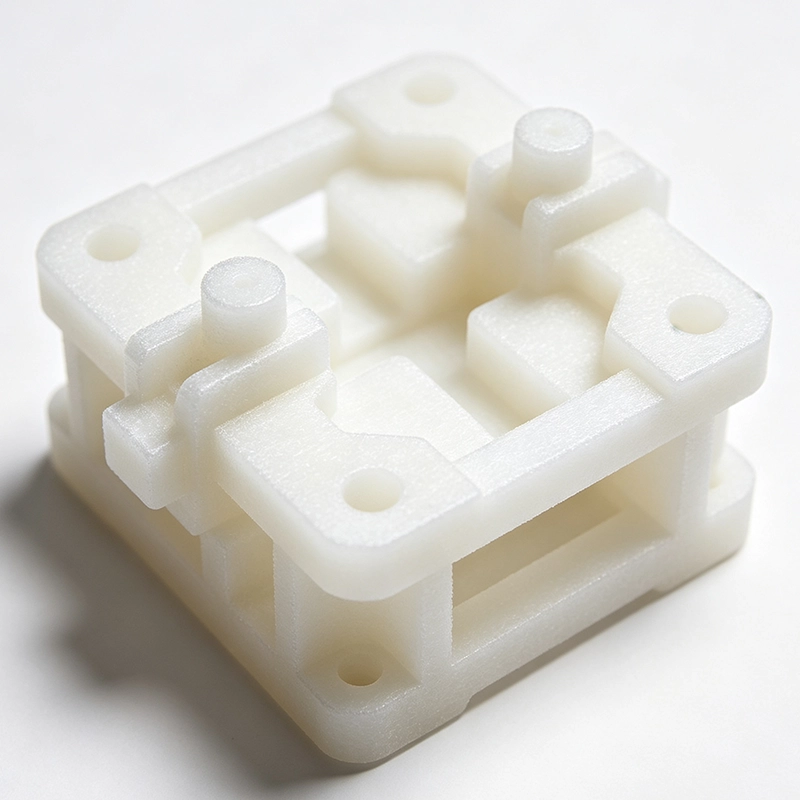

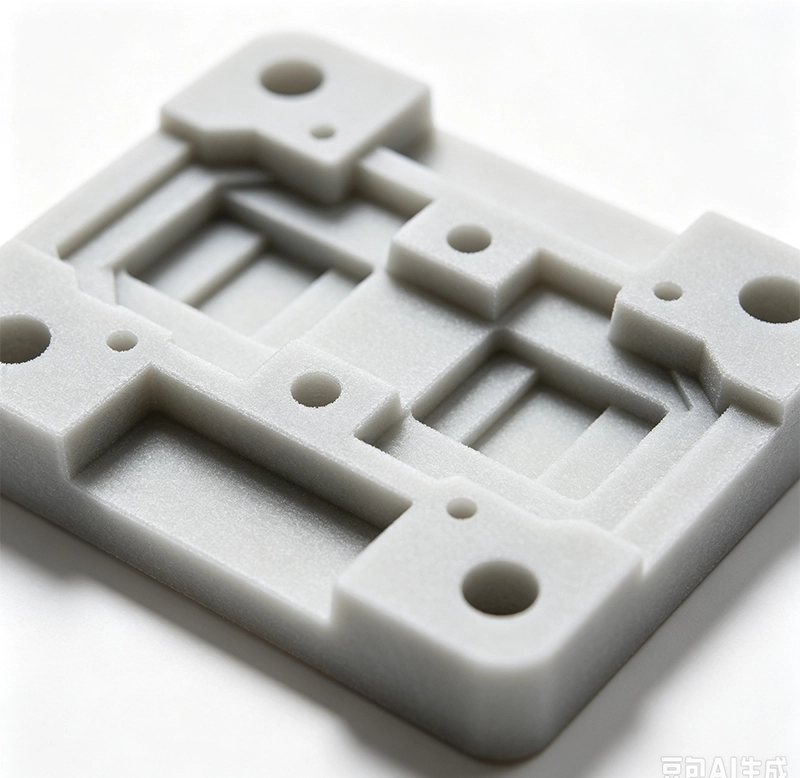

Our 3D printed jigs & fixtures tooling prototypes are custom non‑standard tooling parts manufactured by industrial SLA/SLS additive manufacturing technology. Featuring high positioning accuracy, lightweight body and adjustable clamping structure, these tooling series cover assembly jigs, positioning fixtures, size inspection tools and production‑line auxiliary tooling. All tooling parts complete post‑curing and anti‑wear surface treatment, obtaining stable clamping performance suitable for workshop short‑term batch operation. Ideal for new production‑line trial run, customized fixture verification and low‑cost non‑standard tooling development.
Available Surface Finishes
- As‑printed: Original printing surface, for laboratory fixture function verification.
- Sandblasting: Increase surface friction for anti‑slip clamping requirement.
- Wear‑Resistant Coating: Surface protective layer for repeated clamping in workshop environment.
- Local Reinforcement Treatment: Strengthen stress contact positions to extend fixture service life.
Structural & Functional Breakdown
- Precision Positioning Locating Structure: Matching contour grooves and positioning pins to lock workpiece position accurately.

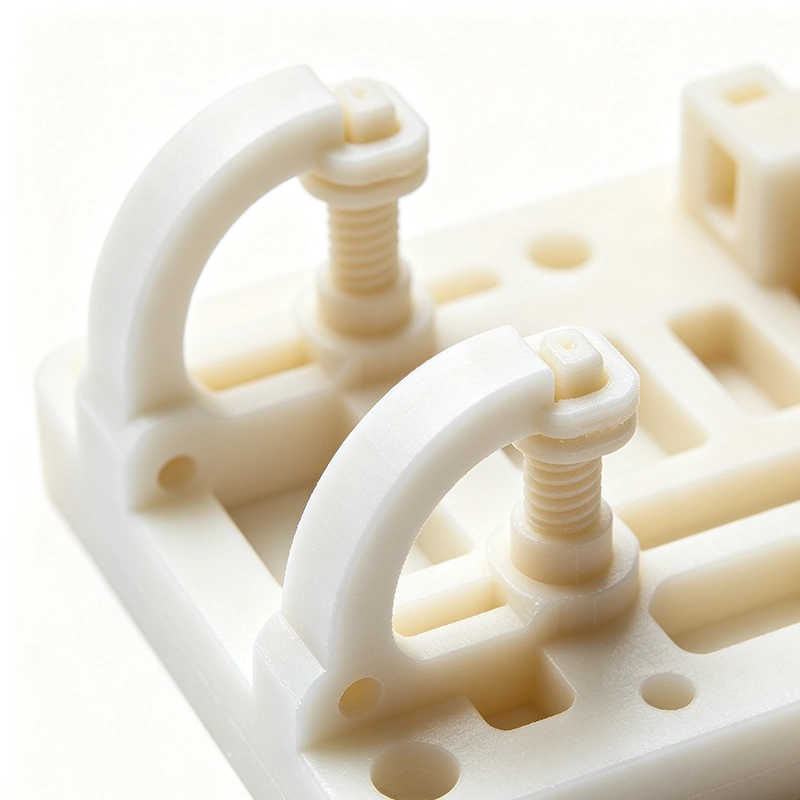

- Clamping & Pressing Mechanism Structure: Reserved installation space for quick‑press components to realize stable workpiece fixation.
- Dimensional Inspection Groove Structure: Custom detecting contour for fast size checking of mass‑produced workpieces.
- Lightweight Monolithic Frame Structure: Remove redundant material while ensuring rigidity for convenient on‑site installation and handling.
Key Machining Highlights
- High‑Precision Locating Dimension Control: Guarantee positioning tolerance to ensure consistent workpiece clamping accuracy.
- Custom Tooling Structure Development: Realize complex special‑shaped fixture difficult for traditional metal machining.
- High‑Toughness Wear‑Resistant Material Application: Select glass‑filled nylon or tough resin adapting to workshop operating environment.
- Fast Iteration Cycle: Skip mold making, quickly iterate fixture versions according to on‑site feedback.
Application Fields
- Automation Production‑line Positioning Fixtures
- Product Assembly Auxiliary Jigs
- Workpiece Dimensional Inspection Tooling
- Electronic Product Testing Fixture Prototypes
- Workshop Non‑standard Custom Tooling
